Diamond Needle Files

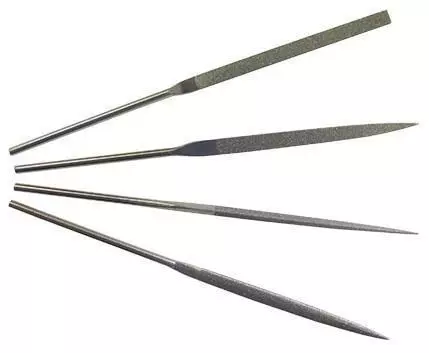

Kemet Diamond Coated Needle Files

These files are available in various sections and are manufactured from high quality steel uniformly electroplated with diamond particles. Normally used by hand. A plastic handle is available. They can also be used in N.S.K. and Diprofil reciprocating Filing machines. Grit size 120 Standard (other grits on request)

Shape Size (mm) Code
5.5 x 1.0 321560
3.5 321562
2.5 321578
5 x 2 321559
Ø 3 321561
5 x 2 321567
1.7 x 6 321610
Handle - 231608

Kemet Diamond Coated Thin Section Flat Files

For use in restricted areas. They have a degree of spring and flexibility built in.

Kemet have many different needle files in Diamond or Steel for use by hand or in NSK and Diprofil reciprocating filing machines.

Shape Type Size (mm) T Length Grit 150 Grit 200 Grit 400
B5 5.5 x 0.5 40mm 321556 321551 321552
B8 5.5 x 0.8 50mm 321553 321554 321555

Large Diamond Hand Files

Large diamond hand files, all grit size 100


Product Shape Size (mm) Code
11 x 3.5 321989
10.5 x 4.4 321990
Ø 6 321991
6.3 321992
7.7 321993

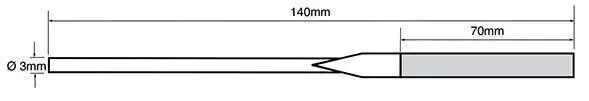

Kemet Diamond Needle Files

Profile Shape Size (mm) T Length (mm) Code
5.5 x 1.5 25 KPFL-01 (Angle Set)
5.5 x 1.5 50 321646
5.5 x 1.0 50 321651
5.5 x 0.8 50 321653
5.5 x 0.5 40 321652
2.5 50 321649
5 x 2 50 321647
3.5 50 321650
Ø 2 50 321654
Ø 3 50 321648

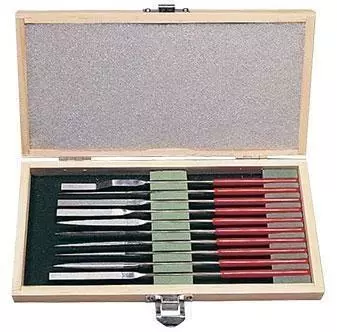

10 piece set each with a plastic grip in wooden case. 321611

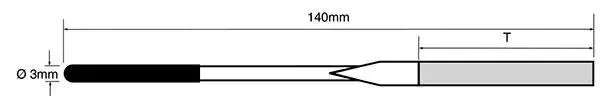

Profile Shape Size (mm) Size (mm) Grit Code
L T
130 30 2 x 1.7~0.4 200 321629
400 321656
600 321626
130 30 4 x 1.7~0.4 200 321630
400 321638
600 321627
130 30 6 x 1.7~0.4 200 321631
400 321637
600 321628
140 50 Ø 3 600 321657
One each of the files shown above (10) in a pvc pouch 321568
