Diprofil Files and Accessories

We offer a wide variety of different machine files to be used in the Diprofil polishing-/filing machines. Many types are available both as single files and as assorted sets of 6 - 10 different files.

Machine files grit & sizes available

Standard Machine Files - DLA®

Profile		Size (mm)	Grit D64	Grit D151	Grit D181
		2x1	333723	333724	333725
		3x1	333728	333634	333727
		4x1	333731	333729	333730
		4x2	333732	333733	333734
		5x2	333735	333736	333737
		Ø 1	333021	333738	333739
		Ø 2	333881	333164	333882
		Ø 3	333740	333022	333741
		Ø 4	333742	333023	333541
		2x2x2	-	333025	-
		3x3x3	-	333654	-
		4x4x4	-	332027	-
		R = 1	-	333990	-
		R = 1.5	-	333743	-
		R = 2	-	333744	-
		R = 2.5x5	333260	333025	333259

Safe Sided Machine Files - DLA®

Profile		Size (mm)	Grit D64	Grit D151	Grit D181
		2x1	333745	333016	333746
		3x1	333747	333017	333748
		4x1	333999	333018	333749
		5x2	333750	333019	333751
		0.5x4	-	333752	-
		1x4	-	333753	-
		2x2x2	333755	333756	333757
		3x3x3	333758	333759	333760
		4x4x4	333761	333198	333762
		R = 1	-	333763	-
		R = 1.5	-	333764	-
		R = 2	-	333765	-

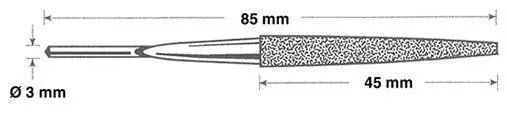

Standard Machine Files - DLE

Profile	Size (mm)	Grit D151
	5x2	333644
	Ø 3	333029
	5x2	333766
	5x2	333030
	3.5x3.Sx3.5	333028
	2.5x2.5	333027
	5x2	333543
	5x2	333767

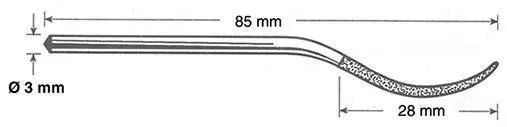

Standard Machine Files - DLF

Shape	Size (mm)	Grit D151
	4.5x2.5	333031
	Ø 3	333032
	5x2.5	333033
	3x3	333768

Standard Machine Files - DLK

Shape	Size (mm)	Grit D151
	10x2.5	333769

Conical Machine Files - DLM

Shape	Size (mm)	Grit D30	Grit D46	Grit D76	Grit D107
	2.5x1.6	333770	333366	333771	333365
	4X1.6	333772	333368	333773	333367
	6X1.6	333774	333370	333775	333369
	8X1.6	333776	333777	333778	333779

Machine Files - DBE

Shape	Size (mm)	Grit D46	Grit D76	Grit D107
	4 x 2	DBE-1-D46	DBE-1-D76	DBE-1-D107
	Ø3	DBE-2-D46	DBE-2-D76	DBE-2-D107
	5x2	DBE-3-D46	DBE-3-D76	DBE-3-D107
	5x2	DBE-4-D46	DBE-4-D76	DBE-4-D107
	3.5x3.5x3.5	DBE-5-D46	DBE-5-D76	DBE-5-D107
	2.5x2.5	DBE-6-D46	DBE-6-D76	DBE-6-D107

Machine Files - DLB

	Shape	Size (mm)	Grit D107
		3.2x1.4	DLB-1-D107
		Ø3	DLB-2-D107
		Ø3	DLB-3-D107
		2.5x2.5x2.5	DLB-4-D107
		3.2x1.4	DLB-5-D107
		4x2	DLB-6-D107

We offer a wide variety of different hand files for different kinds of applications such as deburring and EDM-scale removal. Most types are available both as single files and as assorted sets of 6 - 10 different files.

Hand files grit & sizes available

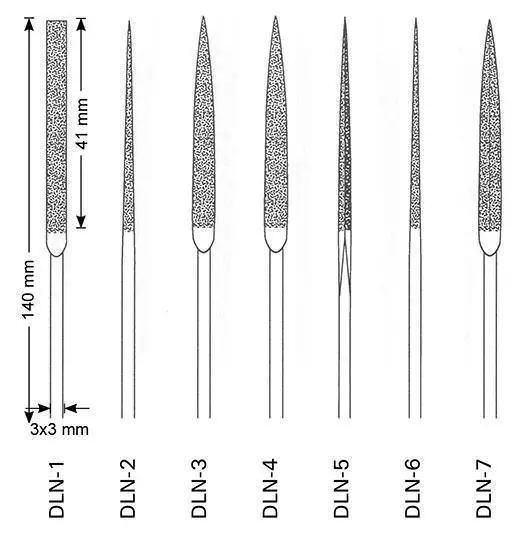

Hand Files - DLN

Shape	Size (mm)	Grit D64	Grit D151
	4x1.3	DLN-1-D64	DLN-1-D151
	Ø 1.6	DLN-2-D64	DLN-2-D151
	4x1.8	DLN-3-D64	DLN-3-D151
	4x1.6	DLN-4-D64	DLN-4-D151
	3x3x3	DLN-5-D64	DLN-5-D151
	1.9x1.9	DLN-6-D64	DLN-6-D151
	4.1x1.5	DLN-7-D64	DLN-7-D151

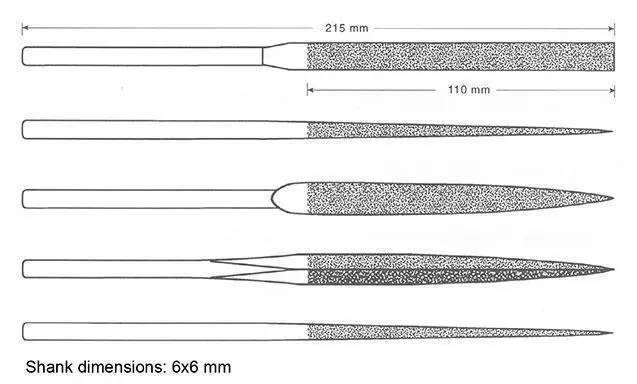

Hand Files - DLG

Shape	Size (mm)	Grit D151
	10x3	DLG-1-D151
	Ø 6.5	DLG-2-D151
	12.2x4	DLG-3-D151
	9.5x9.5x9.5	DLG-4-D151
	5.5x5.5	DLG-5-D151

Hand Files - DLH

Shape	Size (mm)	Grit D151
	5.3x1.4	DLH-11-D151
	Ø 3	DLH-2-D151
	5.1x2.2	DLH-4-D151
	3.8x3.8x3.8	DLH-5-D151
	2.6x2.6	DLH-6-D151
	5.2x1.6	DLH-8-D151
	5.0x1.6	DLH-9-D151
	5.6x1.9	DLH-30-D151

Safe Sided Hand Files - DLH

Shape	Size (mm)	Grit D151
	4.8x1.1	DLH-1-D151
	5.5x1.7	DLH-3-D151
	4.9x2.1	DLH-7-D151

Conical Hand Files - DLS

Shape	Size (mm)	Grit D30	Grit D46	Grit D76	Grit D107
	4 / 2	DLS-1-D30	DLS-1-D46	DLS-1-D76	DLS-1-D107
	4 / 3	DLS-2-D30	DLS-2-D46	DLS-2-D76	DLS-2-D107
	6 / 6	DLS-3-D30	DLS-3-D46	DLS-3-D76	DLS-3-D107
	8 / 8	DLS-4-D30	DLS-4-D46	DLS-4-D76	DLS-4-D107

Hand Files - DBH

Total file length approx 140 mm, Shank diameter 3 mm.

Shape	Size (mm)	Grit D46	Grit D76	Grit D126
	6x1.5	DBH-1-D46	DBH-1-D76	DBH-1-D126
	Ø3	DBH-2-D46	DBH-2-D76	DBH-2-D126
	5x2	DBH-3-D46	DBH-3-D76	DBH-3-D126
	5x2	DBH-4-D46	DBH-4-D76	DBH-4-D126
	3.5x3.5x3.5	DBH-5-D46	DBH-5-D76	DBH-5-D126
	2.5x2.5	DBH-6-D46	DBH-6-D76	DBH-6-D126
	6x2	DBH-7-D46	DBH-7-D76	DBH-7-D126
	5.4x1.5	DBH-8-D46	DBH-8-D76	DBH-8-D126
	1.7x6	DBH-9-D46	DBH-9-D76	DBH-9-D126
	6x1.5	DBH-10-D46	DBH-10-D76	DBH-10-D126

Conical Hand Files - DLL

Shape	Size (mm)	Grit D30	Grit D46	Grit D76	Grit D107
	1.7x2	DLL-1-D30	DLL-1-D46	DLL-1-D76	DLL-1-D107
	1.7x4	DLL-2-D30	DLL-2-D46	DLL-2-D76	DLL-2-D107
	1.7x6	DLL-3-D30	DLL-3-D46	DLL-3-D76	DLL-3-D107
	Ø3	DLL-4-D30

Hand Files DLD

	Shape	Size (mm)	Grit D107
		6.0x1.2	333792
		2.5x2.5	333793
		3x1.5	333794
		3x3x3	334074
		5x2	333795
		3.2x1.5	333796
		4x2.2	333797
		Ø 2.5	333798
		5x1.5	333799
		Ø 2.5	333034

Hand Files - DLQ

Shape	Size (mm)	Grit D46	Grit D126
	8.5x1.6	DLQ-1-D46	DLQ-1-D126
	Ø4	DLQ-2-D46	DLQ-2-D126
	7x2.5	DLQ-3-D46	DLQ-3-D126
	3.5x3.5	DLQ-4-D46	DLQ-4-D126
	4.5 x4.5x4.5	DLQ-5-D46	DLQ-5-D126

Hand Files - DLX

Shape	Size (mm)	Grit D151
	11 x 3.5	DLX-1-D151
	Ø5	DLX-2-D151
	10.5x4.4	DLX-3-D151
	7.7x7.7x7.7	DLX-4-D151
	6.3x6.3	DLX-5-D151

Diamond and CBN grinding pins and points are excellent for different kinds of grinding and deburring applications. Our assortment consists of a wide variety of tools in different shapes, dimensions and grit sizes. All of the below have Ø 3.0 mm shanks. We also offer customer specific tools according to special requirements.

Grinding Pins & Points grit & sizes available

Shape		Dimensions	Grit	Code
	Cone	D 3.1, a 30°, T 5.0, L 46	D151	333806
		D 3.1, a 30°, T 5.0, L 46	D64	333807
		D 8.0, a 90°, T 3.9, L 43.2	D151	333226
		D 8.0, a 60°, T 6.6, L 45.9	D151	333808
	Cone flat end	D 1.6, d 0.9, a 4°, T 10, L 46	D151	333652
		D 2.1, d 1.4, a 4°, T 10, L 46	D151	333809
		D 2.1, d 1.4, a 4°, T 10, L 46	D64	333810
		D 2.6, d 1.75, a 4°, T 3, L 46	D151	333650
		D 7.0, d 2.0, a 30°, T 10, L 49	D151	333076
		D 8.0, d 1.4, a 45°, T 8.5, L 47.5	D151	333412
	Cone inverted	D 2.4, d 1.5, a 20°, T 3, L 46	D151	333811
		D 2.4, d 1.5, a 20°, T 3, L 46	D64	333812
		D 6.5, d 3.5, a 15°, T 10, L 49	D151	333813
		D 8.0, d 3.0, a 90°, T 2.15, L 42	D151	333814
	Wheel	D 7.3, T 0.8, L 40	D151	333247
	Wheel	D 9.0, d 7, T 0.6, L 40	D151	332133
	Wheel	D 20, d 12.75, T 1.0, L 48	D151	333815
	Grinding wheel	D 17.2, d 14.6, T 2.4, L 48	D151	334063
	Grinding wheel	D 5.8, T 2.3, R 1, L 41	D151	333816
		D 9.8, T 3.4, R 1.5, L 42.2	D151	333817
	Cutting wheel	D 15.0, d 13.0, T 0.6, L 48	D151	333265
		D 18.0, d 16.0, T 0.6, L 48	D151	333818
		D 22.0, d 20.0, T 0.6, L 48	D151	333657
		D 36.0, d 34.0, T 1.0, L 48	D151	333819

Diamond cutting-/grinding wheels are excellent for cutting or grinding applications as well as for making slots in different kinds of materials such as semi-conductors. Most of the tools are also available with a Ø 2,35 or Ø 3,0 mm shank attached. We also offer customer specific tools according to special requirements.

Precision diamond taper pins are ideal for grinding and polishing of carbide drawing dies for the wire and tube industries. All tools have a Ø 6,0 mm shank.

Precision Steel Files

Diprofil precision steel files for use in soft and semi-hard steel as well as other materials of low to medium hardness.
