Diamond Plated Profile Points BMS30D

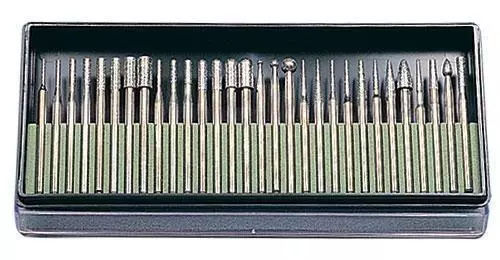

Kemet Diamond Plated Profile Points are high quality electro plated rotary grinding tools. They are designed for shaping and finishing hard materials including Tungsten Carbide and Ceramics. Individual shapes are available in packs of 10 with 3mm ø shank. The BMS 30D Kit (Code:321509) contains 30 profile points. The shapes marked * form the kit, which is available with ø 3mm or ø 1/8” shank. All Grit 120.

Point
Ø mm	1	1.5	2	2.5	3	3.5	4	5	6	1	1.5	2	2.5	3
T mm	8	8	8	8	10	10	10	10	10	8	8	8	8	10
Ref Mos.	10A	15A	20A	25A	30A	35A	40A	50A	60A	10C	15C	20C	25C	30C
Code	321542	321540	321480	321481	321543	321482	321498	321515	321516	321531	321524	321530	321545	321549
Items in 30D Kit	*	*	*	*	*	*	*	*			*	*	*	*
Point
Ø mm	3.5	4	5	6	2	3	3	1.5	2	3	2	3	6	2
T mm	10	10	10	10	10	10	10	10	12	14	12	15	13	10
Ref Mos.	35C	40C	50C	60C	20T	30T	30V	15R	20R	30R	20P	30P	60P	20F
Code	321538	321537	321517	321518	321490	321491	321533	321525	321541	321485	321523	321522	321544	321486
Items in 30D Kit	*	*	*		*	*	*	*	*	*	*	*		*
Point
Ø mm	3	4	5	3	6	1.5	2	3	4	5	6	3	3
T mm	10	10	10	14	13	-	-	-	-	-	-	5	6
Ref Mos.	30F	40F	50F	30J	60J	15B	20B	30B	40B	50B	60B	30Q	30S
Code	321497	321521	321528	321529	321519	321526	321520	321532	321535	321527	321539	321536	321534
Items in 30D Kit	*		*				*	*		*			*
