Ultrasonic Cleaners for Light-Industrial, Dental, Jewelry and much more
Experience the power of ultrasonic cleaning with the remarkable K-Sonic series. Our benchtop ultrasonic cleaners are designed to deliver 100% ultrasonic power, ensuring unparalleled cleaning efficiency. Crafted with precision and housed in sleek stainless-steel casings, these units are built to withstand the demands of professional cleaning tasks. K-Sonic units feature an innovative design with higher unit feet, providing enhanced protection for the sensitive electronic components against potential splashwater damage. Additionally, each unit is equipped with a convenient heating and drain duct located at the rear, allowing for effortless maintenance and temperature control.
The K-Sonic series comprises three distinct units, each available in different sizes, catering to diverse cleaning requirements. With user-friendly operation at the forefront, our ultrasonic cleaners boast an impressive array of features. Harnessing the power of 100% ultrasonic energy at a frequency of 37 kHz, the K-Sonic units excel in efficiently tackling various cleaning tasks.
Our ultrasonic cleaners incorporate a unique booster-function, delivering an extra boost of ultrasonic power to effortlessly eliminate stubborn mineral contaminants and polishing pastes. By increasing the ultrasonic power by up to 20%, even the most persistent impurities are swiftly and effectively removed.
Adapting to the specific needs of each cleaning application, the K-Sonic units allow for adjustable temperature settings. Once the desired temperature limit is reached, the unit provides a clear visual warning, ensuring the prevention of coagulation and safeguarding delicate items from potential damage caused by excessive heat.
K-Sonic 6 Ultrasonic Cleaner
| Technical information | K-Sonic 6 | K-Sonic 12 | K-Sonic 30 |
|---|---|---|---|
| Tank total volume (l) | 5.9 | 12.9 | 27.5 |
| Recommended tank operating capacity (l) | 4.3 | 10 | 22 |
| Ultrasonic power effective (W) | 150 | 200 | 300 |
| Heating power (W) | 400 | 800 | 1200 |
| Unit ext. dim. W/D/H (mm) | 370 x 225 x 280 | 380 x 315 x 330 | 575 x 375 x 330 |
| Tank int. dim. W/D/H (mm) | 280 x 130 x 149 | 275 x 215 x 199 | 475 x 270 x 199 |
| Basket int. dim. W/D/H (mm) | 255 x 105 x 95 | 250 x 195 x 135 | 450 x 255 x 135 |
| Weight (kg) | 5.1 | 7.5 | 11.0 |
| Voltage | 230V-single phase-50Hz or 110V-single phase-60Hz | ||
| Product Code | 359482K | 359484K | 359486K |
The intelligent baskets are designed to easily accommodate the range of component fixtures below. This ensures individual security for items such as industrial parts, glassware, watch components, and jewelery. The optimized arrangement maximizes the number of objects cleaned in the basket, leading to efficient use of water, cleaning chemicals, energy, time, and money while ensuring superior cleaning results.
| Basket Attachment |  |  |  |  |  |  |  |  | |
|---|---|---|---|---|---|---|---|---|---|
| Product Code | 359030 | 359031 | 359032 | 359033 | 359034 | 359035 | 359036 | 359037 | |
| Ext. dimension Dia x H (mm) | 25 x 55 | 25 x 30 | 85 x 65 | 25 x 55 | 40 x 75 | 55 x 45 | 75 x 45 | 30 x 35 | 50 x 40 |
| int. dimension Dia x H (mm) | 5 x 40 | 4 x 15 | 50 x 35 | 15 x 40 | 30 x 65 | 0.35 x 25 | 25 x 25 | 20 x 20 | 40 x 25 |
| Outer overlay Dia(mm) | - | - | - | - | - | 15 | 40 | - | - |
| Pcs. | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Material | Plastic | ||||||||
K-Sonic 12 Ultrasonic Cleaner

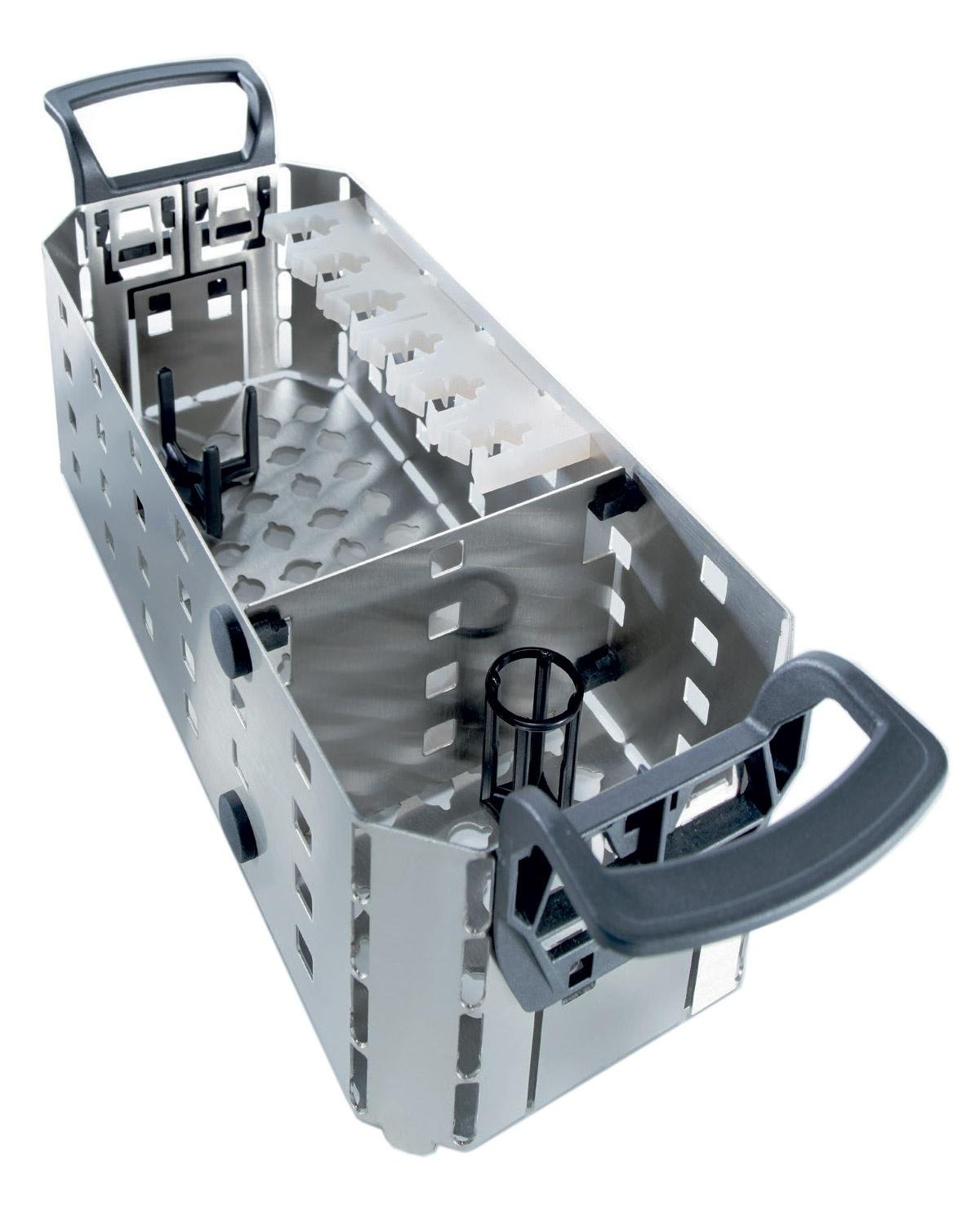

K-Sonic Ultrasonic Cleaner basket
| Basket Attachment |  |  |  |  | |||||
|---|---|---|---|---|---|---|---|---|---|

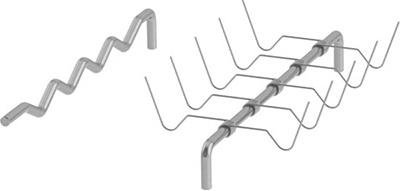

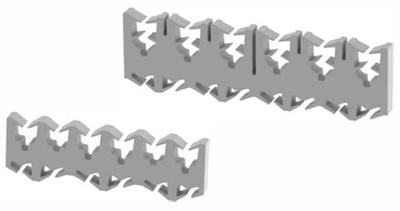

| PARTITION For vertical division of the modular basket | SECOND LEVEL For horizontal division of the modular basket | SIDE & FLOOR CHAMBER For holding various instruments, containers and workpieces | HOOK SHAFT HOLDER Positioning aid | ||||||
| Product Code | 359038 | 359039 | 359040 | 359041 | 359042 | 359043 | 359044 | 359045 | 359046 |
| Dimensions WxDxH (mm) | 105 x 50 x 1 | 105 x 90 x 1 | 200 x 60 x 1 | 255 x 130 x 1 | 255 x 105 x 1 | 250 x 195 x 1 | 105 x 10 x 35 | 150 x 10 x 45 | 105 x 3 x 15 (Holder shaft) |
| 110 x 55 x 25 (Holder hooks) | |||||||||
| For K-Sonic models | 6, 12, 30 | 6, 12, 30 | 12 | 30 | 6 | 12, 30 | 6, 12, 30 | 6, 12, 30 | 6, 12, 30 |
| Pcs. | 2 | 2 | 2 | 2 | 1 | 1 | 10 | 5 | 1 holder shaft, 1 holder hook |
| Silicone holder per set | 10 | 10 | 10 | 10 | 5 | 10 | - | - | 5 |
| Material | Stainless steel | Stainless steel | Silicone | Plastic-coated Stainless steel | |||||
