Valve Grinding Gate, Globe, Check, Safety, Control Valves & Gate Valve Wedges
Model FL for valves 2.5" - 12"
Drive heads on the model FL incorporate individually gear driven grinding discs, permitting rapid and efficient grinding of exceptionally smooth, flat surfaces for tightest possible seats.
The Model FL can be mounted easily to grind the flanges on the valves, this reduces the risk of cutting damages to the seat. To cover your needs the FL can be equipped with a range of driving and grinding heads, permitting numerous combinations within the 62-300 mm range (2.5”-12”).
Every model FL is supplied with a rugged, customized carrying/storage case complete with accessories. The case is fitted with specially designed compartments molded to the shape of each component, allowing operators to confirm at glance that all items are in place before and after grinding.

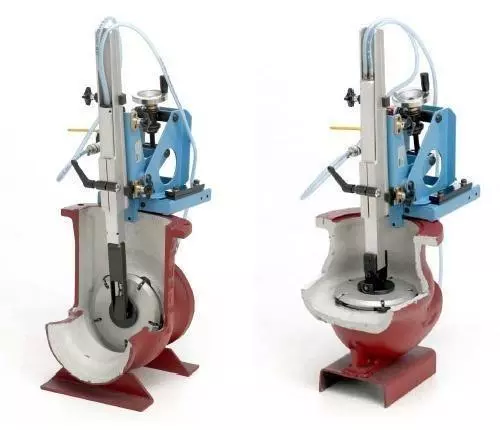

Horizontal or vertical grinding
With this valve grinder you have the option to grind globe valves (model FL-B), gate valves and wedges (FL-C) or both (FL-BC). The valve grinder is easily set up for wedge grinding using the existing clamping system
All valve grinders are designed for operational compatibility. They can be run from bench-mountings and driven by pneumatic or electric powered motors. Equipment purchased initially for relatively small diameter ranges can be conveniently upgraded to deal with larger ranges at a later date. This unique degree of flexibility means that grinders can be readily adapted to suit a wide variety of customer needs.
Kemet grinding paper is tested, proved and perfectly fitted to suit your machine under the conditions it will be working in (from 40 grit to 3mic).
Possible valve grinding range for model FL
A= 62-300 mm (2.5"-12”)
B= 39 mm (1.56") min
C= 100mm (4”) min - 600mm (24”) standard - 1000 mm (60") max (option)
D= 80- 507 mm (3.20"-14.8")
L= 570 mm (22.8") min
Carrying case Model FL-BC 200 760 x 560 x 280mm (30.4" x 22.4" x 11.2") Total weight Model FL-BC 200 39 kg (87.8 lb)
| Model | FL B 200 65-200mm (2”-8”) | FL B 300 65-300mm (2”-12”) | FL C 200 65-200mm (2”-8”) | FL C 300 65-300mm (2”-12”) | FL BC 200 65-200mm (2”-8”) | FL BC 300 65-300mm (2”-12”) |
|---|---|---|---|---|---|---|
| Base unit |  | | | | | |
| Bottom plate for grinding gate valve wedges | option | option | | | | |
| Drive shaft for gate valves | option | option | | | | |
| Drive shaft for globe valves | | | option | option | | |
| Electric drive unit 110 or 220V | option | option | option | option | option | option |
| Pneumatic drive unit (6-7 bar) | option | option | option | option | option | option |
| Regulator for pneumatic drive unit | option | option | option | option | option | option |
| Holder for drive shaft. Maximum depth 600mm (24”) | | | | | | |
| Holder for drive shaft. Maximum depth 900mm (36”) | option | | option | | option | |
| Driving head FL ø 65mm (2.5") | | | | | | |
| Driving head FL ø 80mm (3”) | | | | | | |
| Driving head FL ø 100mm (4") | | | | | | |
| Driving head FL ø 125mm (5") | | | | | | |
| Driving head FL ø 150mm (6") | | | | | | |
| Driving head FL ø175mm (7") | option | option | option | option | option | option |
| Driving head FL ø 200mm (8") | | | | | | |
| Driving head FL ø 225mm (9") | option | option | option | option | option | option |
| Driving head FL ø 250mm (10") | option | | option | | option | |
| Driving head FL ø 300mm (12") | option | | option | | option | |
| FL grinding head ø28mm (1.1") | | | | | | |
| FL grinding head ø35mm (1.4") | | | | | | |
| FL grinding head ø 40mm (1.6") | | | | | | |
| FL grinding head ø 50mm (2") | option | option | option | | option | |
| FL grinding head ø 70mm (2.8") | option | option | option | option | option | option |
| Conical segments in different angles Ø65 – 200mm (2 ½” – 8”) | option | option | option * | option * | option | option |
| Transport and storage case with tools required to operate the FL | | | | | | |
| Grinding discs rough, medium and fine ø 28/35/40mm | | | | | | |
* Requires B drive shaft
A selection of standard models, other configurations and accessories are available on request
