Semiconductor Microscopes

Semiconductor microscopes, also referred to as semiconductor inspection microscopes or semiconductor wafer inspection microscopes, are specialised optical instruments designed for the examination and analysis of semiconductor wafers and other microelectronic components. These microscopes play a crucial role in the semiconductor manufacturing industry, ensuring the quality and reliability of microchips and electronic devices. Key characteristics and applications of semiconductor microscopes include:

  • High-powered optics for detailed examination of semiconductor wafers and microelectronics.
  • Brightfield and darkfield illumination for standard imaging and defect highlighting.
  • Automation and advanced software for efficient wafer inspection.
  • Precise wafer mapping to identify defects.
  • Defect identification and classification for quality control.
  • Wafer alignment and metrology for lithography processes.
  • Inspection of various wafer types.
  • Cleanroom compatibility for contamination control.

KMXJL101A, 50X – 800X, Materials/Semiconductor Routine & Research Microscope

This sturdy and reliable microscope is ideal for observing silicon wafers, assemblies, and standard metallurgical reflective samples. It features a trinocular head for potential digital camera attachment and includes a comprehensive set of high-quality plan achromatic materials objectives. Specimens can be conveniently placed on the mechanical stage with XY stage controls, including a rapid traverse override for scanning larger areas. The microscope allows for adjustable focusing tension and includes a focus lock to protect the objectives from damage. Illumination is provided by an integral LED reflected light illuminator with adjustable intensity, field and aperture diaphragms, a polariser, and a set of Y, G, B, and diffusion filters.

Constructed on a durable KMXJL upright series industrial microscope frame, this microscope ensures exceptional stability for demanding applications. It offers optional accessories, such as camera adaptors, digital cameras, image analysis software, extra objectives, and eyepieces. Additional specifications include:

  • HHead: Trinocular
  • Eyepieces: 10x
  • Objectives: 5x, 10x, 20x, 40x, 80x Plan Achromatic Objectives
  • Stage: Large Mechanical Glide Stage (280mm x 270mm, moving range of 204mm x 204mm)
  • Illumination: LED Illuminator with Adjustable Intensity

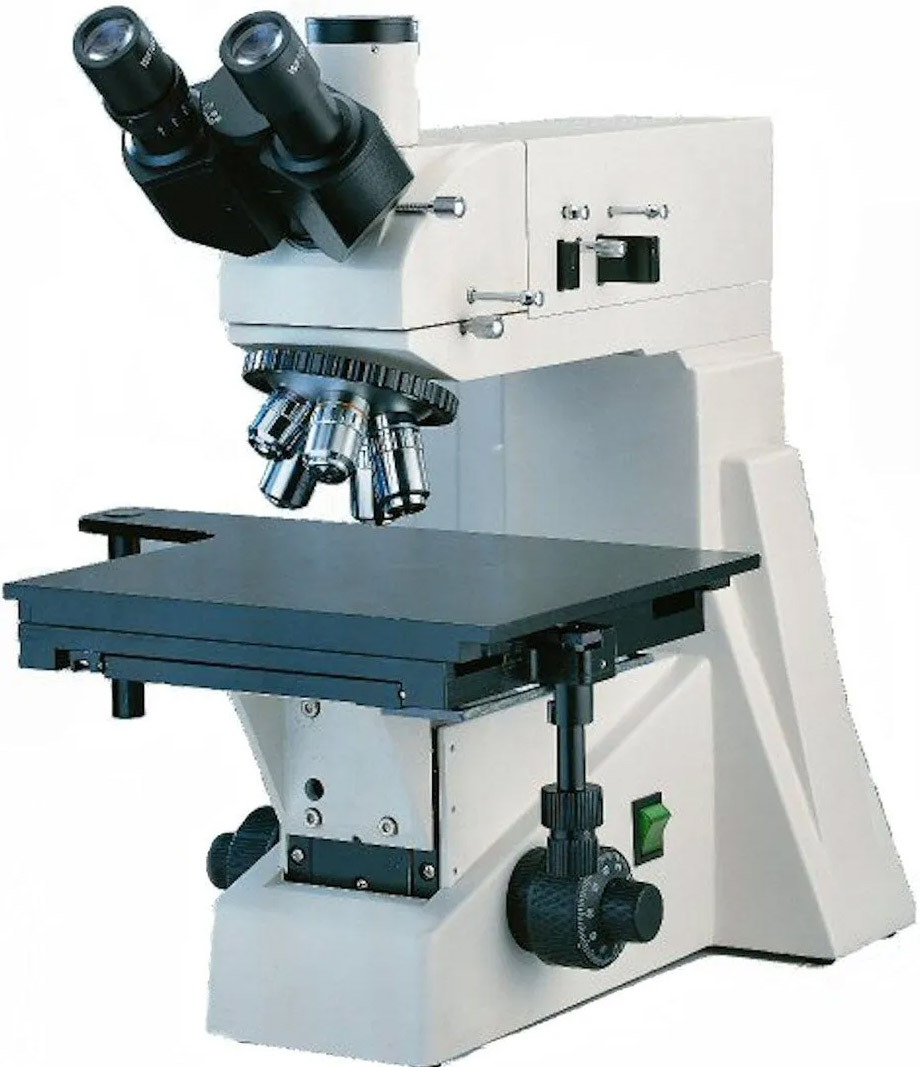

Materials/Semiconductor Routine & Research Microscope

KMXJL302BD, 50X – 800X, Materials/Semiconductor Routine; Research Microscope

This high-capacity, premium materials microscope is well-suited for examining silicon wafers, assemblies, and standard metallurgical reflective samples. It features infinity optics with darkfield/brightfield incident (reflected) illumination, making it a versatile instrument. The trinocular head is ready for digital camera attachment, and it comes with a complete set of high-quality infinity BD plan achromatic materials objectives mounted on a rotatable objective turret. The microscope boasts a generously sized mechanical stage, accommodating even 8-inch wafers, with XY stage controls, including a rapid traverse override for efficient scanning of large areas. Focus can be fine-tuned with adjustable tension, and a focus lock safeguards the objectives from potential damage.

Equipped with a powerful integral reflected light illuminator, featuring a 50W halogen lamp with adjustable intensity, field and aperture diaphragms, a polariser, and a set of Y, G, B, and diffusion filters. Built on the largest and highly robust KMXJL upright series industrial microscope frame, it ensures superior stability for demanding applications. Optional accessories include camera adaptors, digital cameras, image analysis software, additional objectives, and eyepieces. Additional specifications are:

  • Eyepieces and Objectives: Pair of WF10X FN22 Widefield Eyepieces, 5X, 10X, 20X, 40X, 80X BD Infinity Plan Achromatic Objectives
  • Head: Trinocular head with interpupillary distance adjustment
  • Stand & Focus Mechanism: Large Stable Stand with coaxial coarse and fine focus
  • Stage and Condenser: Very Large Mechanical Glide Stage (204 X 204mm)
  • Illumination: 50W Halogen Light with Adjustable Intensity
Materials/Semiconductor Routine; Research Microscope
