Clamping Devices for Servocut and Metacut

Many sample preparation applications require the sectioning of a specimen from a small or irregularly shaped sample or component part. The small size or irregular sample shape can create positioning and clamping difficulties for the operator. To overcome these difficulties, we offer a number of special clamping devices for use with abrasive cutters. Cut-off machines are equipped with stainless T-slot clamping tables. All clamping devices are made of stainless steel and can be attached to the cutters T-slot beds in seconds for fast and positive clamping of parts having virtually any configuration.

Convenient clamping for your samples

  • Quick acting clamping vise for standard application
  • Jaw block sets for sensitive and round samples
  • Vertical clamping options with various V-shoes and chain spanner for irregular and large samples
  • Rotating vise and angular cutting fixture
  • X-axis tables for cutting plane parallel sections

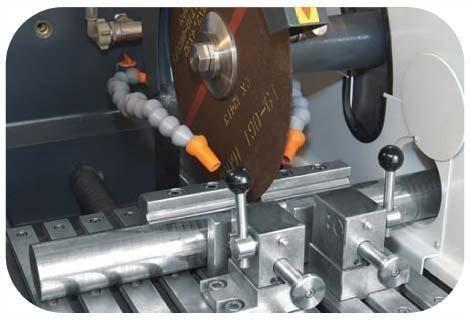

Quick Acting Clamping Devices

  • Suitable for various applications
  • Made of stainless steel
  • Easy to exchange
  • Cam-lock mechanism for fast and safe clamping
  • Optional block sets for sensitive and round specimens

Quick Acting Clamping Devices

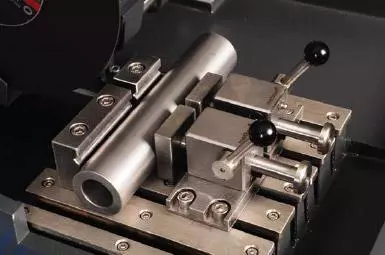

Quick Acting Clamping Vice Assembly, Right

Quick Acting Clamping Vice Assembly, Right

GR 0029 for METACUT 302 & SERVOCUT 402
GR 0012 for METACUT 302
GR 0121 for SERVOCUT 502
GR 0172 for SERVOCUT 302

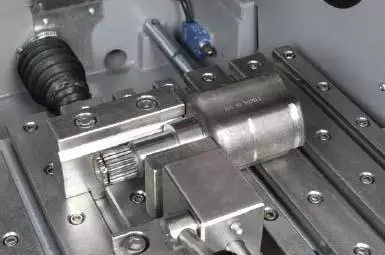

Quick Acting Clamping Vice Assembly, Left

Quick Acting Clamping Vice Assembly, Left

GR 0121 for SERVOCUT-502
GR 0029 for SERVOCUT-402
GR 0172 for SERVOCUT-302, METACUT-302

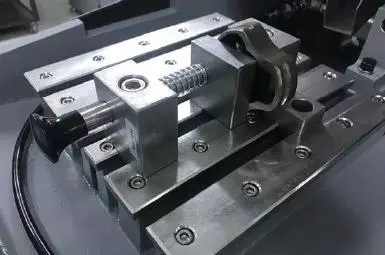

Compact Vice ass. Spring Loaded

Compact Vice ass. Spring Loaded

GR 0154 for METACUT 302 & SERVOCUT 402
GR 0151 for METACUT 302 & SERVOCUT 302

Vertical Clamping Devices

  • Most widely used clamping tools for irregular, large and flat samples
  • Very easy and quick clamping with various optional V-shoes
  • Can be used with our height blocks to increase the clamping height.
  • Supplied with hand tool.

MBU 1011 Vertical clamping device

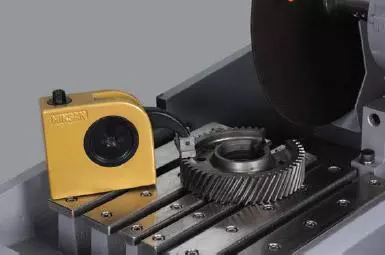

Vertical clamping device with clamping shoe

15 02 for METACUT 302 & SRC 402/502/602
15 01 for METACUT 302 & SERVOCUT 302
15 05 for MICRACUT 202 & GEOCUT 302

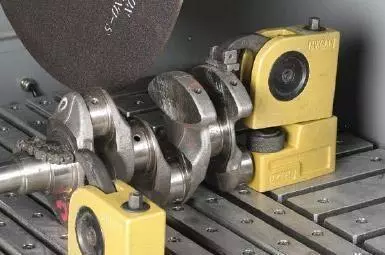

MK 10 21 Height Block

Height Block

15 03 for MTC 302/SRC 302
15 04 for MTC 302/SRC 402/502/602

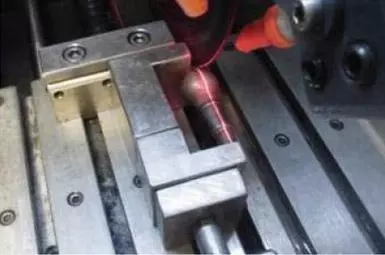

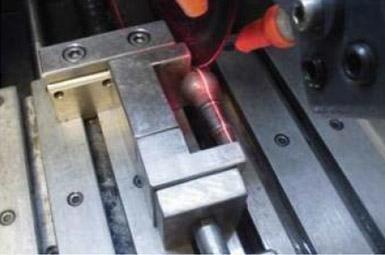

Fastener Vice for Longitudinal Cutting

Fastener Vice for Longitudinal Cutting

GR 0310 for MTC 302/SRC 302/402
GR 0312 for MTC 302/SRC 402

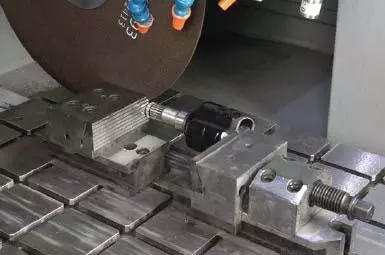

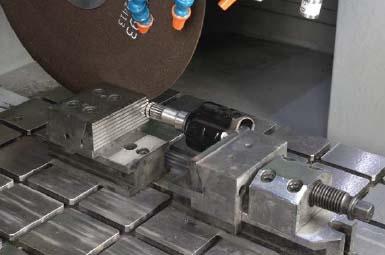

Mechanical Clamping Device

Mechanical Clamping Device

GR 0610 for SRC 602

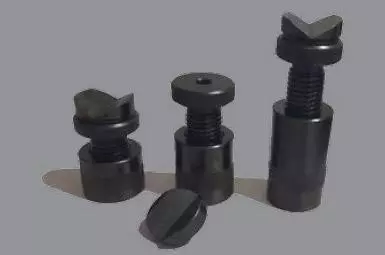

Adjustable V-support blocks

Adjustable V-support blocks

  • Function securely and precisely, with stepless adjustment for clamping of irregularly shaped workpieces
  • Accurate and safe supporting and setting of any workpiece in various levels and heights.
  • Safe & reliable clamp supports for heigths from 57 to 155mm.
  • Direct insertion into the T-slot

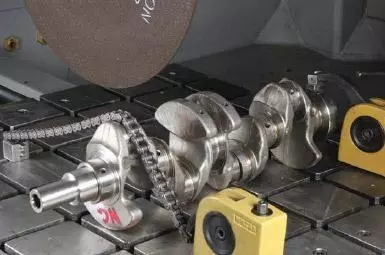

Chain Spanner Set

Chain Spanner Set

  • Provides strong and even clamping of large, irregularly shaped specimens.
  • Steel chain anchor block for retaining chain
  • Clamp or un-clamp with a simple turn of the key.

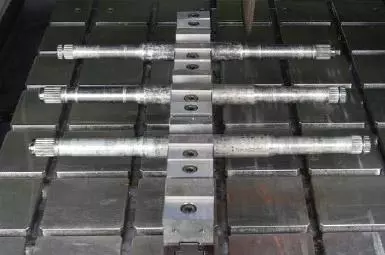

Serial Clamping Device

Serial Clamping Device

  • Suitable for clamping multiple samples from 1 to 3
  • Single motion tightening

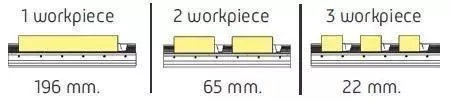

Serial Clamping Device range

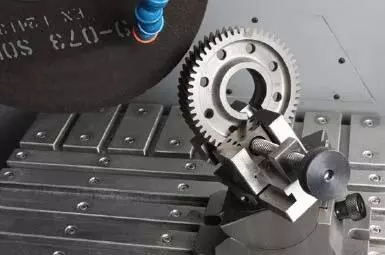

Angular Cutting Device

Angular Cutting Device

  • Used for angular cutting specimens.
  • Two-dimensional angle adjustment is done using vernier scale and fine adjustment screw.
  • Horizontally rotatable up to 360°. Vertically adjustable up to 2 × 60°
